The inside dimensions of a 20’ container are important to note while deciding to pick a 20’ container. To accurately calculate cargo capacity, it’s crucial to understand the size and dimensions of a 20-foot container for your cargo shipment.
Among the various container sizes available, the 20-foot container is the most commonly used, both for shipping goods and for building modifications.
As previously mentioned, container manufacturing must meet technical requirements based on the International Organization of Standardization (ISO), including the size and dimensions.
To help you understand better, below is comprehensive information about the inside dimensions of a 20’ container!
Contents
20 Container Specifications: Size, Dimensions, Weight, Capacity

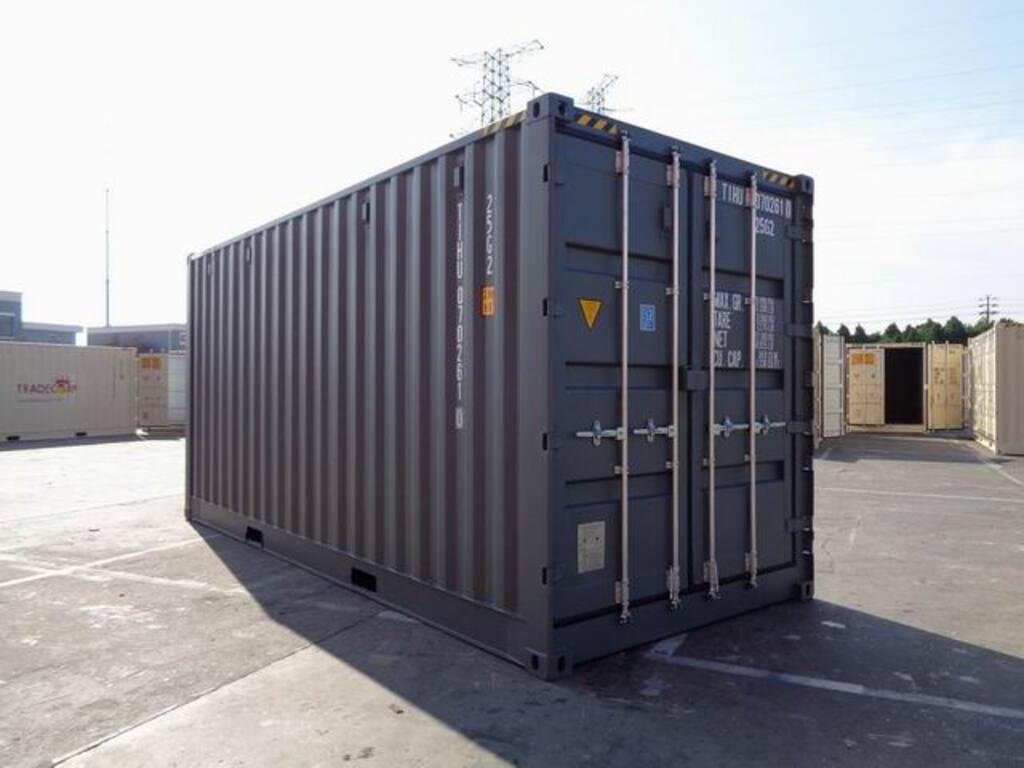

20-Foot Container Size
The 20’ container is a very commonly used size, as it has ideal dimensions for medium-scale shipments and is easy to transport using various modes of transportation such as trucks, ships, and trains.
20-Foot Container Dimensions
The exterior dimensions of a 20’ container are:
- Length 20’ or 6m
- Width 8’ or 2.4m
- Height 8.6’ in 2.6m
20-Foot Container Interior Dimensions
In addition to the exterior, the standard inside dimensions of a 20’ container are also set. These dimensions are approximately:
- Length 19’ or 5.8m
- Width 7.5’ or 2.3m
- Height 7.5’ or 2.3m
These dimensions are smaller than the exterior dimensions due to the presence of a layer of material that protects the cargo from external conditions.
20’ Container Specifications: Container Weight & Capacity
In terms of weight, a 20’ container is divided into 3 categories, they are:
- Tare weight: 4,585 lbs or 2,080 kgs
- Max payload: 62,615 lbs or 28,400 kgs
- Max cargo: 67,200 lbs or 30,480 kgs
Advantages of 20’ Containers
20’ containers offer several advantages to support the shipping process, just like other container products. For example, they are readily available, have affordable rental rates, and many more.
1. Easier to Move
As we know, the dimensions of a 20’ container are the most standard ones; they are neither too small nor too large, as seen in the image of the container. This certainly makes it easier for shipping personnel to move the container at the port, on ships, or when transporting it to trucks.
2. Affordable Rental Prices
20’ container rental prices are very affordable, accommodating a variety of needs. The costs usually depend on the type of container you want, whether it is a general-purpose 20’ container, an open-top container, or a reefer container.
3. Suitable for Beginner Exporters
For those of you just starting in the international shipping business, we highly recommend using a 20’ container. Furthermore, to make stock easier to find, you can also minimize business losses if unforeseen circumstances arise during the shipping process.
4. Suitable for All Needs
With a length of approximately 20’, a standard container width of 8’, and a load capacity of 62,615 lbs, a 20’ container can be used to transport various types of cargo. This includes fresh food and meat, automotive spare parts, steel plates, and even chemical industrial materials.
Types of 20’ Containers
20’ containers come in several types, depending on the type of cargo and the intended use. They are:

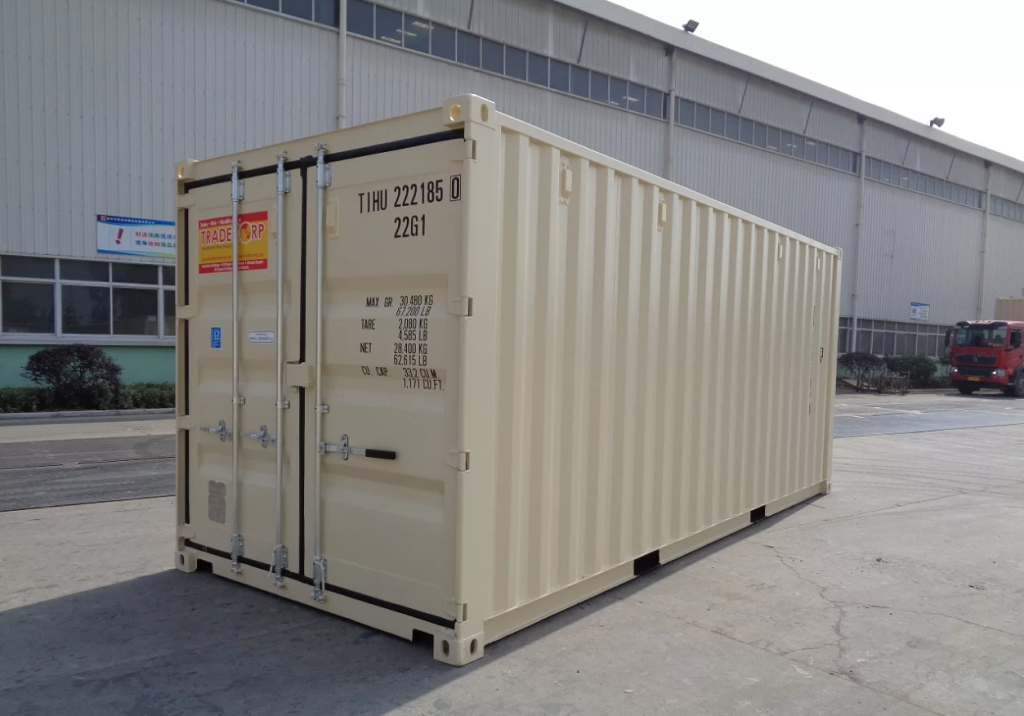

General Purpose
General-purpose or dry containers are versatile containers commonly used to transport dry goods that do not require temperature control. Transported cargo includes textiles, machinery, furniture, and other consumer goods.
Refrigerated Container
These containers are used to transport goods that require temperature control, such as fruit, meat, fish, dairy products, and pharmaceuticals. Each unit is equipped with adequate refrigeration and can be temperature-controlled as needed.
Open-Top Container
This type of container has an open roof that can be removed or covered with a tarpaulin. This unit is ideal for transporting goods that are too tall to fit in a standard container, such as heavy machinery or construction materials.
Flat-Rack Container
A flat-rack container is a type of container that lacks side walls and a roof. This unit is used for large or heavy cargo, such as heavy vehicles, large drums, and industrial equipment.
Types of Goods That Can Be Shipped Using a 20 Container
The 20’ container is designed to transport a wide variety of goods in bulk, both domestically and for export and import. Here are some common types of goods that can be shipped:
- Industrial Products & Construction Materials: Such as machinery, spare parts, iron, light steel, packaged cement, and even project equipment.
- Consumer Goods & Retail: Including packaged food and beverages, household products, electronics, and clothing.
- Agricultural & Plantation Raw Materials: Including fertilizers, grains, dried crops, or other raw materials.
- Furniture & Interior Products: Such as tables, chairs, cabinets, or other furniture items packaged in bulk.
- Non-Perishable Goods (Dry Cargo): Suitable for goods that do not require refrigeration, such as paper, plastic, or cans.
Applications of 20-Foot Containers Beyond Shipping
In addition to meeting shipping, logistics, and import-export needs, the inside dimensions of a 20’ container are also increasingly popular in various modified applications, such as:

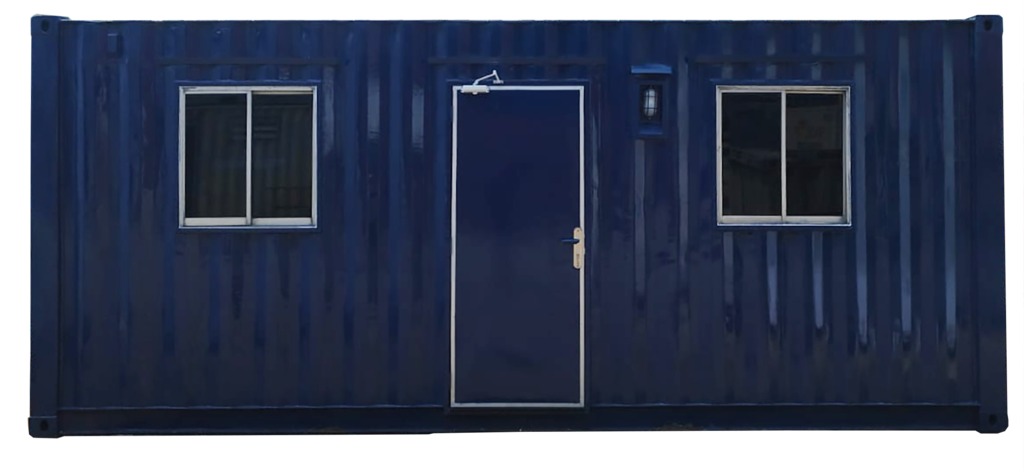

- Container Office: This is a portable and quick-to-build field office.
- Container Cafe / Booth Container: A practical and attractive solution for culinary businesses with a minimalist and modern concept.
- Mini Warehouse: For a temporary storage space at project sites or industrial areas.
- Project Accommodation: For temporary housing for workers in remote locations such as mining or construction projects.
- Modular Sanitation (Toilets/First Aid Rooms): Used at events, projects, or public areas as emergency facilities.
Conclusion
When you need a large container or box to distribute a large amount of cargo, a container is the perfect solution.
