Knowing the specifics of the mini shipping container dimensions chart is necessary before you buy one to help you imagine how big it is gonna be.
Just like its name, this container is way smaller than the standard shipping container (20’ & 40’), measuring only around 8′ or 10′.
The use of containers has been known for a long time, which facilitates logistics and import-export activities in the distribution of goods. Although both units are used to transport goods, they have different specifications and uses.
Mini containers are usually used to ship small quantities of goods or for logistics purposes that require flexibility in storage and transportation due to their compact dimensions.
To know the whole mini shipping container dimensions chart, features, and capacity, read the article below!
Benefits
Using a mini shipping container, 10’ or smaller, comes with several unique advantages. They are:
Compact and Space-Efficient
Mini container units fit in tight spaces where standard 20’ or 40’ containers won’t fit, such as unused corners of a property, to maximize land use.
Therefore, they are ideal for urban properties, backyards, parking lots, or narrow sites.
Lower Cost
Mini containers are less expensive to purchase, modify, transport, and maintain.
Therefore, they are great for startups or personal projects with a smaller budget, as you will save money on foundation, permits, and materials compared to larger units.
Easy to Transport and Move
Sending small-capacity cargo over long distances will be safer using mini containers. They are lighter and smaller, meaning they are easier to deliver and reposition.

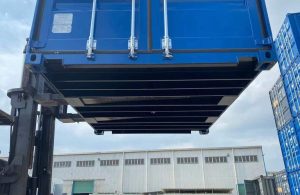

You can move them using a flatbed truck with a forklift or crane, not a heavy-duty hauler. This benefit makes them ideal for mobile retail booths, pop-up shops, or temporary food stalls.
Quick to Customize
The mini container is faster to convert into kiosks, micro-offices, or mini storage units than the standard size.
The common modifications of a mini container include serving windows, roll-up doors, shelving, insulation, or small air conditioning units.
Multi-Purpose Use
The main function of mini containers is to store small goods in commercial companies, at home, or on construction sites.
However, you can also repurpose them as a crawfish prep station or mobile boil unit, outdoor walk-in cooler, ticket booth, merchandise kiosk, pop-up coffee shop, and more.
Durable and Secure
Mini containers use stainless steel in their construction and can withstand bad weather, thus protecting the goods inside from damage due to rain, wind, and sunlight.
Moreover, they are also secure, as you can lock them firmly for overnight storage or off-season use.
Eco-Friendly and Reusable
Using refurbished or repurposed mini containers reduces construction waste. This is a good choice for eco-conscious businesses and green building certifications.
Modular Integration
If you want an additional room for your office, house, or storage, you can just use mini containers. They can be stacked, connected, or combined with other containers.
Mini Containers: Dimensions Chart & Features
To know the variations of the mini shipping container dimensions chart, find out in this section!
6’ Mini Container
Dimensions:
| Dimensions | L 6’ x W 6’5″ x H 6’1″ |
| Volume | 192 cu ft |
| Tare weight | 1,764 lbs |
| Max payload | 9700 lbs |
| Max cargo | 11464 lbs |
Features:
Introducing our most compact container, the 6’ Dry Shipping Container. At just 6 feet long, 6.5 feet wide, and 6.1 feet high, this type of container fits perfectly in tight spaces.
The 6’ Mini Container features two two-locking-bar mechanisms with easy-opening doors, a lockbox, forklift pockets, corner castings, durable plywood floors, and corrugated walls.
The 6’ dry shipping container has floor-to-ceiling corner posts that maximize the usable area and doors on one end that are easily accessible for loading and unloading.
The lock box, cam locks, and other reliable locking mechanisms guarantee the security of the container’s contents during both storage and transportation.
Additionally, an air vent is incorporated to reduce the accumulation of moisture and promote airflow.
7’ Mini Container
Dimensions:
| Dimensions | L 7’ x W 8’ x H 9.6’ |
| Volume | |
| Tare weight | |
| Max payload | |
| Max cargo |
Our 7’ Mini Container has End Opening Doors located at the end rather than the side. These doors are commonly used for access, providing the usual entry point for loading and unloading goods.
This container is also loaded, which is pre-loaded with goods or cargo, intended for shipping or storage.
It has a durable and consistent coating finish, which is resistant to fading and weathering, ideal for outdoor use.
8’ Mini Container
Dimensions:
| Dimensions | L 7’4″ x W 8’ x H 8’2″ |
| Volume | 349 cu ft |
| Tare weight | 2,094 lbs |
| Max payload | 11,133 lbs |
| Max cargo | 13,227 lbs |
Features:
Like the 6 container, the 8’ mini containers also feature lock bars, a lock bar, corner castings, lashing rings, air vents, durable plywood floors, and corrugated walls.
The 8-foot containers are durable and secure enough to keep your goods dry and safe, as well as the well-ventilated interior offers a secure setting for storing products.
They have the easy-to-open doors at one end of which can speed up the loading and unloading process.
The container also has plywood flooring, which gives the items being stored a solid and long-lasting foundation. The flooring is also moisture-resistant, lowering the possibility of moisture exposure-related damage.
Moreover, the container’s corrugated walls are an excellent option for shipping and storage needs as they offer durability, weather resistance, and cost-effectiveness.
Corrugated walls for dry shipping containers are a useful and adaptable solution for various applications thanks to their lightweight construction, enhanced ventilation, and customizability.

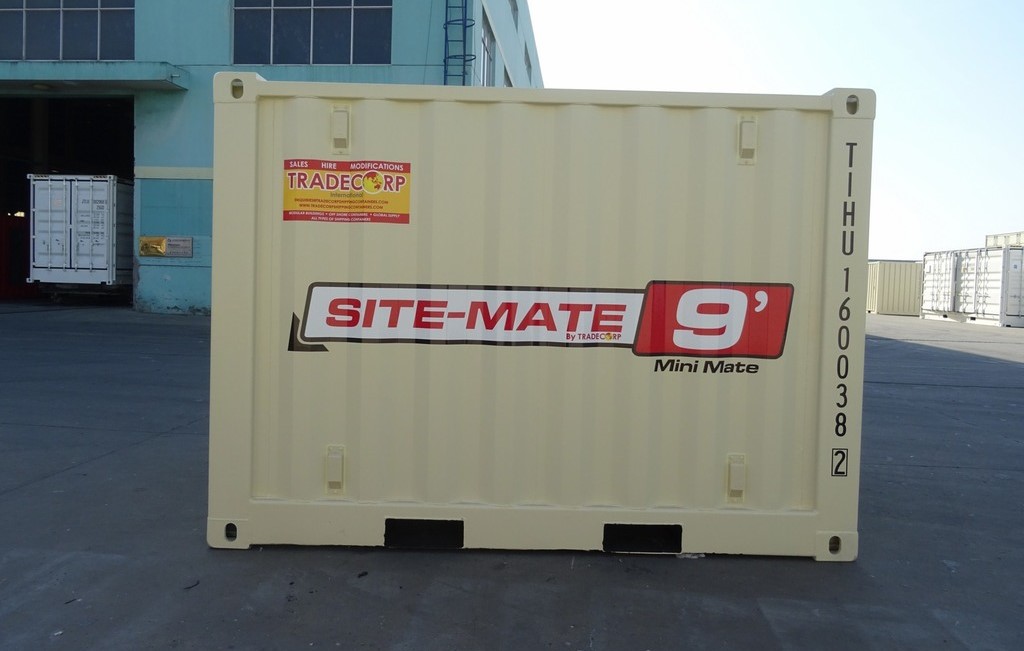

9’ Mini Container
Dimensions:
| Dimensions | L 9’ x W 8’ x H 8’6” |
| Max Gross Weight | 13,360 lbs |
| Tare weight | 1,940 lbs |
| Max payload | 11,420 lbs |
Features:
This mini container features, including corner castings and forklift pockets, are available to help users transport and move the mini container as needed.
The 9’ Mini Container has vinyl floors to help the Corten steel prevent moisture from building inside, thus protecting your belongings and cargo from water-caused damage during storage or transit.
The locking bars help the easy-to-open (EOD) doors keep the interior from potential intruders.
Furthermore, you can also request additional customizations if you have specific requirements for using the container to meet your business needs.
10’ Mini Container
Dimensions:
| Dimensions | L 10’ x W 8’ x H 8.6’ |
| Volume | 565 cu ft |
| Tare weight | 2,730 lbs |
| Max payload | 26,460 lbs |
| Max cargo | 23,730 lbs |
Features:
Tradecorp’s 10’ dry shipping containers are made of Corten steel, which can prevent corrosion and other environmental factors.
The containers are also fitted with double doors on one end with a locking bar mechanism, which makes it easy to access the contents inside and provides an extra layer of security for your goods.
Besides, they are also composed of corrugated walls, plywood floors, forklift pockets, corner castings, air vents, and a CSC (Convention for Safe Containers) plate.
This makes it ideal for storing items that are sensitive to moisture and temperature changes, such as electronics, machinery, and food products.
10’ High Cube Mini Container
Dimensions
| Dimensions | L 10’ x W 8’ x H 9.6’ |
| Volume | 636cu ft |
| Tare weight | 2,890 lbs |
| Max payload | 23,570 lbs |
| Max cargo | 26,460 lbs |
Features
The 10ft high cube mini shipping container dimensions chart is 10’ long, 8’ wide, and 9’6’’ high. It means they are 1′ higher than the standard 10’ containers.
With an extra space, this container can load more cargo without taking up any more ground space.
The containers also have double doors on one end with a lock box and a locking bar mechanism for maximum security, forklift pockets for easy handling, easy-to-clean plywood floors, air vents, corrugated wall panels, corner castings, and a CSC (Convention for Safe Containers) plate.
The interior of this 10’ high cube shipping container is made of plywood floors, which have a high density and exceptionally low moisture content, preventing fungi and termites from attacking it.
It is also why shipping containers can withstand frequent cargo loading and sea travel.
This container is also equipped with air vents that allow excess moisture-laden air to escape, keeping each item in the container in excellent condition.
Lashing rings are also provided to secure the goods inside the container, and the corrugated walls are durable and resistant to damage.
Mini Container Variations from Tradecorp
After knowing the mini shipping container dimensions chart, read this section to get a recommendation of mini containers that are available for sale and rent!
6’ Mini Container
The 6’ Mini Container is a type of cargo container that is used to transport dry goods, such as clothing, food, machinery, and other items that do not require temperature control.
The container is made of weathering Corten steel, which offers safety and durability for the cargo inside, and is designed to be stacked, loaded, and unloaded onto ships, trucks, and trains for mobility.
The Corten steel also makes the containers resistant to corrosion and impact damage.
This unit offers the peace of mind that comes from knowing your goods are safe and secure, in addition to being affordable and reusable, reducing waste and environmental impact.
Due to their smaller size, 6-foot containers are perfect for use in confined areas like a tiny backyard, a driveway, or a parking lot.
7’ Mini Container
Tradecorp’s 7’ Mini Container is a smaller-sized container. It only measures 7’ in length, making it more compact and suitable for specific storage or transport needs where a full-size container might be too large.
Therefore, this container is used in cases where space is limited or smaller loads need to be securely stored.
8’ Mini Container
For individuals who require additional space for storage, transit, or other uses, an 8’ Mini Container is a flexible and affordable alternative.
The 8’ containers are perfect for a variety of purposes because it has more internal storage space than a 6’ dry shipping container.
The 8’ container is made to be portable and is simple to move by truck.
Hence, this container unit is a great option for people who frequently move or need to keep their possessions in several locations.
Although the size is considered small, this container is durable and secure enough to keep your goods dry and safe, while it withstands the harsh weather from the sun, rain, and wind.
However, you can also reconstruct the container into personal workspaces, small art studios, coffee shops, and many other possibilities.
9’ Mini Container
Protected with the best container security features, the 9’ Mini Container from Tradecorp shows how mini containers are supposed to be made and function in helping users.
With its high-grade Corten steel construction, the 9’ Light Ivory EOD Mini Container can protect your belongings or small cargo from all external damage.
With its modest size and ample capacity, this mini container provides homes and offices with the best mini storage platform when it is impractical to use regular 20’ and 40’ shipping containers.
10’ Standard Mini Container
10’ Mini Containers are a versatile and durable storage solution that offers a secure and weather-resistant environment for your goods.
These compact and portable containers are ideal for those who require extra storage space for their businesses, homes, or construction sites.
It is designed to meet the stringent standard set by the International Organization for Standardization (ISO) for shipping containers and is designed to last for many years.
10’ High Cube Mini Container
Our 10’ High Cube Mini Container provides you with 1’ extra space in height without taking up any more ground space.
It has corten anti-corrosive steel structure, which is more durable and has better rust prevention properties that will improve the life of the container.
It can last for many years and adhere to the strict requirements imposed by the International Organization for Standardization (ISO) for shipping containers.
Our 10’ high cube container is not only ideal as a storage room, you can also use it for unlimited conversion projects, such as a ticket office, coffee shop, food stand, boutique/shop, private office, and many more.
10’ Half-Height Mini Container
The 10’ Half-Height Mini Container is an easier way to load and unload your cargo offshore, thanks to its open top feature. Therefore, this container is capable of holding heavy and dense bulk goods compared to taller containers.
This container has half the height of a standard container, making it more sturdy and strong to help with transporting goods with heavy weights.
You can use this in the mining industry to transport mining equipment or mining products such as sand, gravel, ore, pipes, cables, construction materials, machinery, and large raw materials.
Conclusion
From the mini shipping container dimensions chart above, they are great for projects with limited space, offering compact-sized space that maximizes efficiency without compromising on storage capacity. They can seamlessly fit into tight areas, making them an ideal solution for confined environments where space optimization is crucial.
If you would like to buy mini containers, buy them at a trusted provider such as Tradecorp. Tradecorp is a reliable container sales, purchase, rental, and modification service company. Tradecorp provides modification and custom container services to residences by adding windows, doors, walls, and roof insulation.
Our experienced staff is ready to help you arrange the shipping of your container to your requested location. Fill out our quote form to buy or rent from us!
